6x13m small square movable wheeled tent--warehouse tent

Specialized mobile wheeled prefabricated tent for electric power (for substation projects of power supply bureaus)

product structure

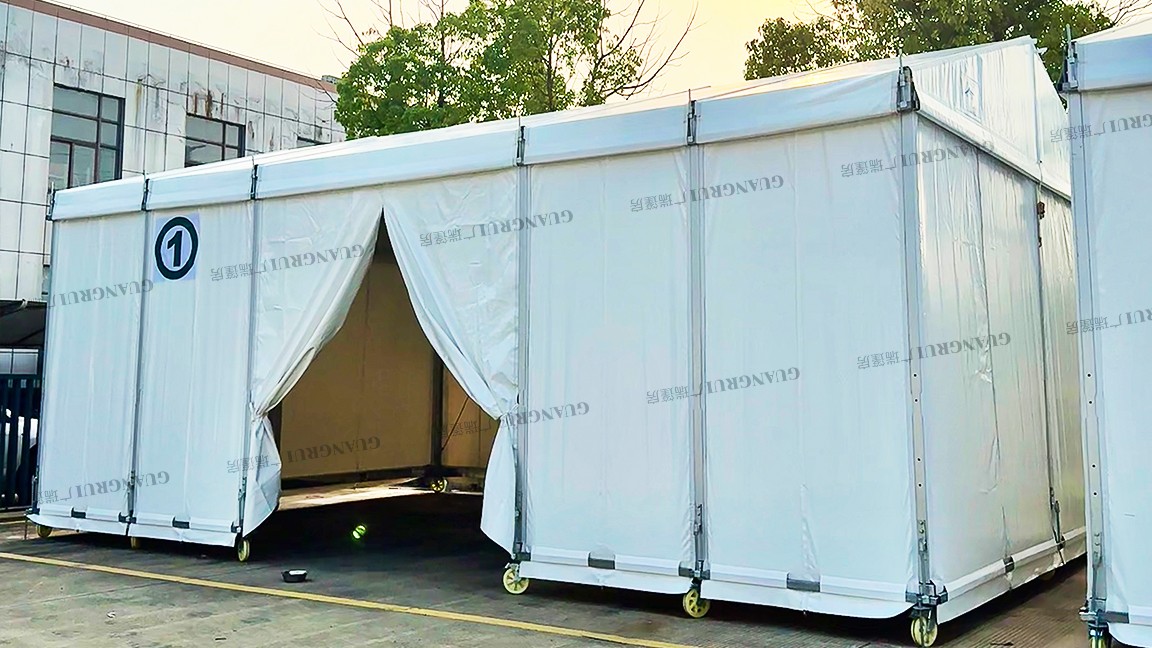

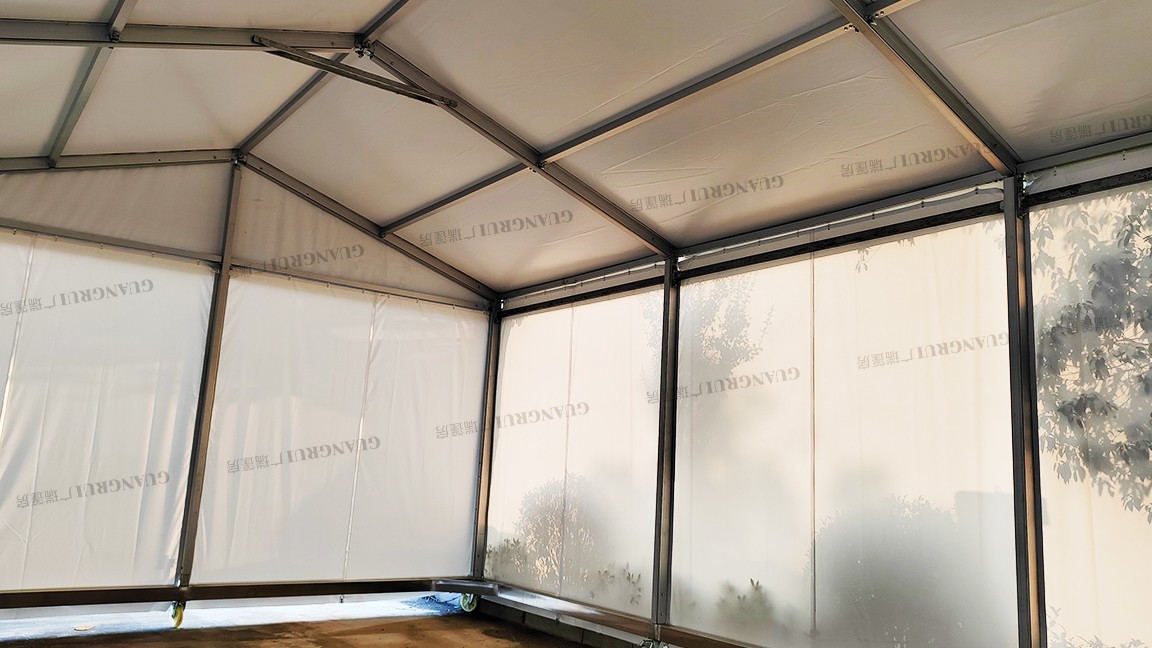

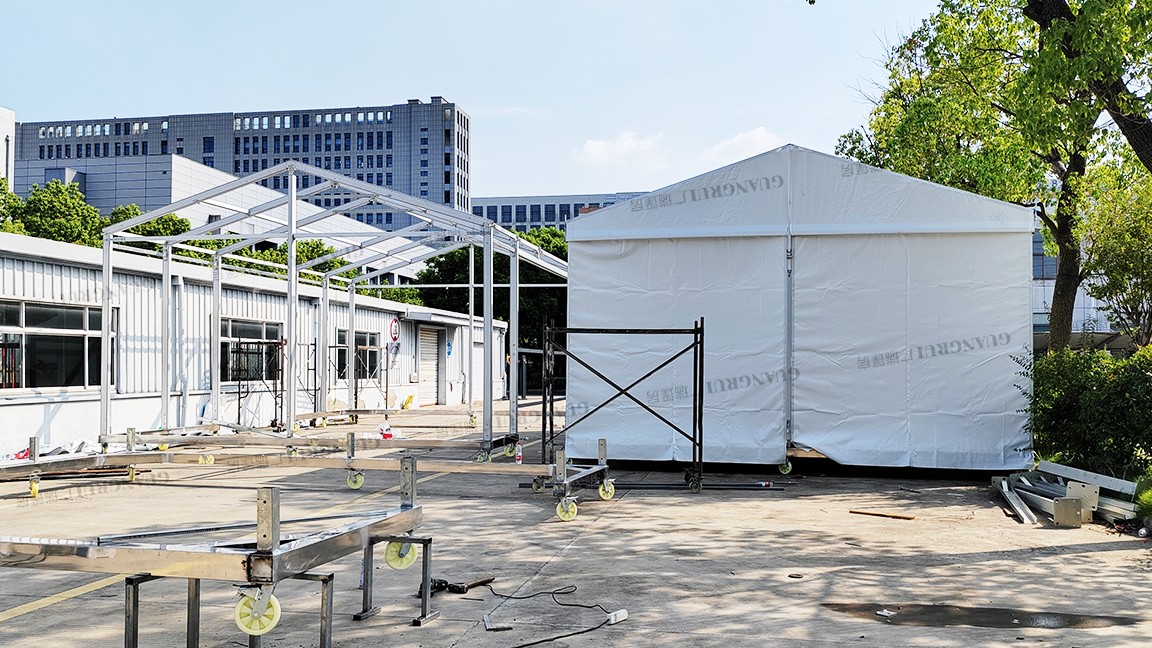

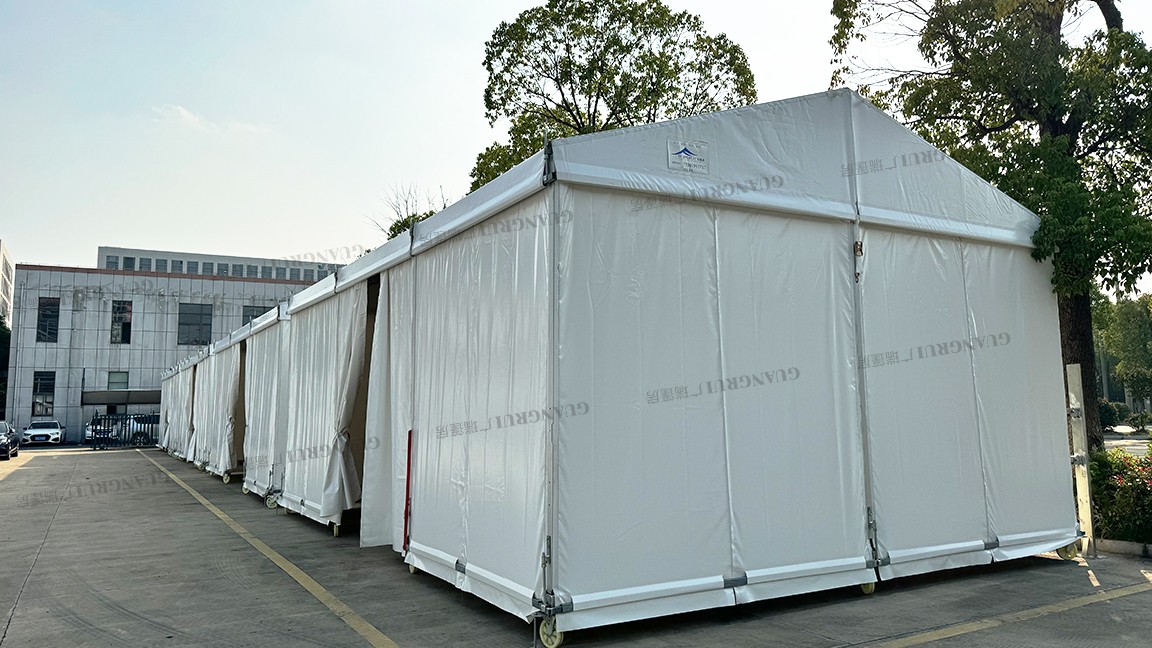

The frame adopts a 6061-T6 high-strength aluminum alloy herringbone slope-top frame structure, which is corrosion-resistant and suitable for long-term outdoor use. There is no intermediate column inside, providing a spacious interior. The bottom is equipped with a customized industrial caster base assembly, which can be manually pushed and moved as a whole. The casters come with brake locks, which can be locked and fixed in place after being placed. Modular bolt assembly allows for easy disassembly and transportation of parts for on-site assembly.

The enclosure is made of B1-grade flame-retardant double-sided PVC-coated tarpaulin, which is waterproof, sunscreen, UV-resistant, dustproof, and heat-insulating. The surrounding curtain-style enclosure can be fully opened or closed, equipped with equipment access doors, and reserved with windproof cable points, capable of withstanding winds of level 8-10. The A-frame design allows for quick drainage of rain and snow without water or snow accumulation.

There is no need to pour a concrete foundation; the original cement floor can be directly placed, avoiding the risks associated with civil engineering approval and unauthorized construction. The aluminum alloy frame has a service life of up to 15-25 years, and the entire tent can be reused in multiple substations and power supply stations.

Main application scenarios

✅ GIS high-voltage equipment dustproof maintenance shed: for the installation and maintenance of substation GIS equipment, a dust-free enclosed working environment is established to isolate rainwater and dust. After maintenance, the entire equipment can be pushed away without disassembly.

✅ Temporary warehouse for power materials and tools: used to store instruments, maintenance tools, and spare parts, replacing the need for a civil engineering warehouse.

✅ Emergency power maintenance workshop: mobile and ready for use at outdoor emergency repair sites, serving as a shelter for personnel and a protective workstation for tools.

✅ High-voltage equipment debugging and testing booth: providing a closed protective space for on-site testing and debugging

Optional upgrade configuration

Transparent observation windows, industrial roller shutter doors, thermal insulation tarpaulins, tent walls, etc.

Customizable dimensions: Common spans range from 3 to 60 meters, and the length can be extended through splicing multiple units.

Comparing containers and prefabricated color steel houses: the overall movement does not require crane lifting, resulting in zero loss during relocation; no civil engineering approval is needed, and they can be reused multiple times across different projects.
