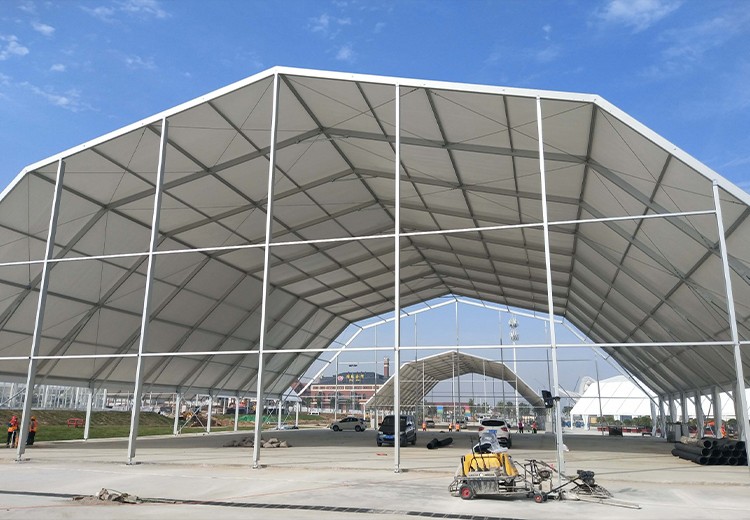

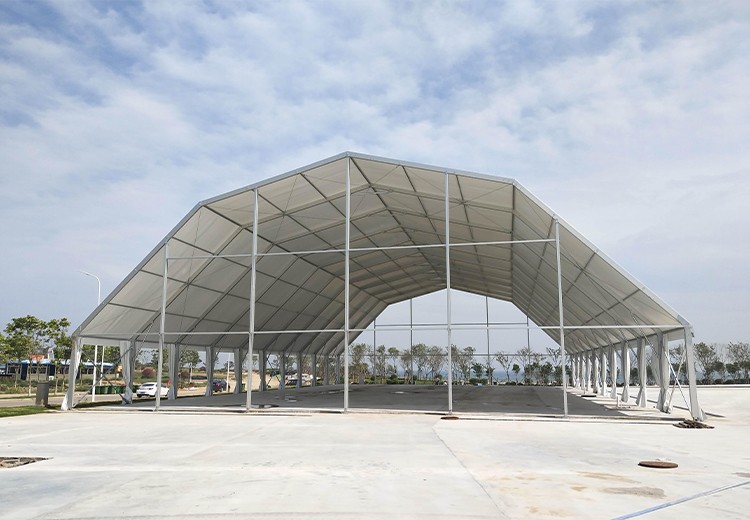

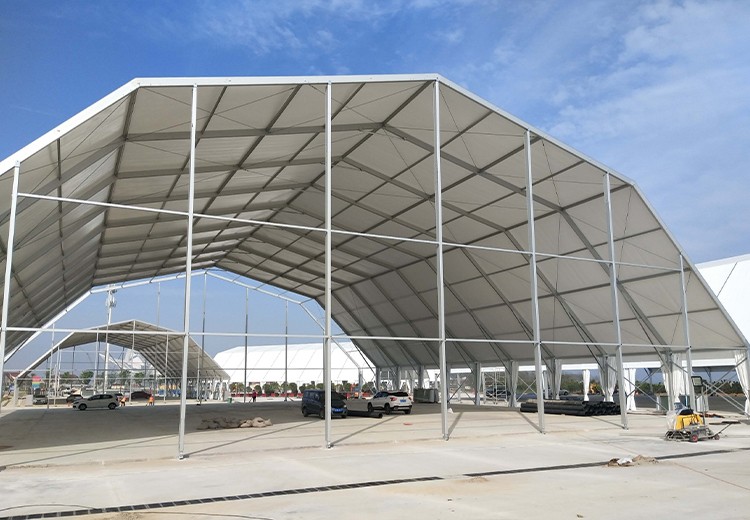

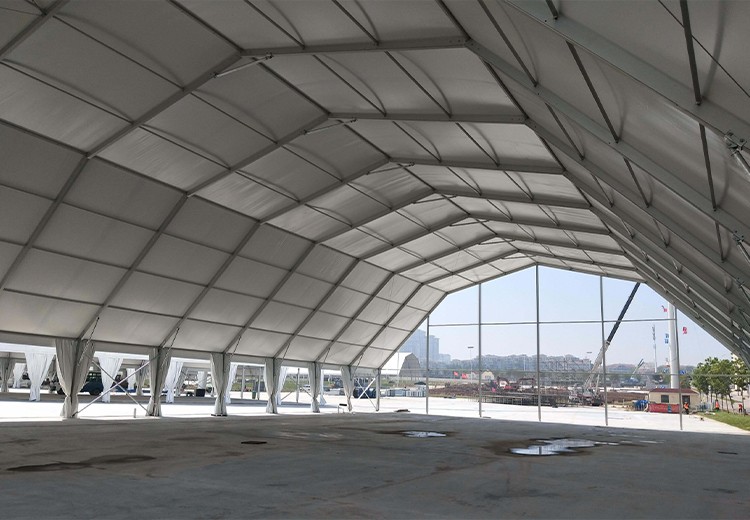

This 30-meter multi-arch aluminum tent features a series of connected arch spans that deliver
an exceptionally wide and tall clear-span interior, ideal for large-scale industrial storage, logistics hubs,
manufacturing facilities, and major outdoor events.
The continuous multi-arch profile maximizes usable floor area while distributing structural loads
efficiently across the connected frame system.
Built with heavy-duty aluminum alloy arches and weatherproof PVC fabric, it withstands high wind,
snow, and UV exposure in exposed open-air environments.
The modular multi-span design allows unlimited length extension and custom width configurations.
Optional roller doors, ventilation, lighting, and insulation packages available.
Contact us for a free structural layout plan and competitive quote.
With the rise of the sports craze, sports shelters provide strong support for exciting events, such as the quadrennial World Cup, European Cup football, various golf, horse racing and other events, and the shadow of sports shelters is everywhere. Due to the use of aluminum alloy frames and special surface treatment, the covered sports stadium can withstand strong winds of 8-10 levels and provide shade and rain protection outdoors. After construction, it basically does not require maintenance. The span ranges from 3-50 meters, and the length can be increased or decreased by 3 or 5 meters to meet the needs of different venues. We will also customize according to the needs of our customers
Premium modular event & storage structure — 3m to 60m span, factory-direct OEM/ODM
Guangrui Tent's aluminum clear span tent is a modular, relocatable structure engineered for maximum interior usability. With no internal poles, every square meter of floor space is fully usable — ideal for weddings, exhibitions, corporate events, temporary warehouses, and emergency relief operations.
As a direct factory with over a decade of manufacturing experience, we offer full OEM/ODM customization: custom sizes, colors, wall configurations, and branding. Every tent is built with extruded 4-channel aluminum profiles (anodized ≥12μm) and hot-dip galvanized steel connectors (≥60μm), ensuring a frame lifespan of up to 30 years.
| Frame Material | Extruded 4-Channel Aluminum Alloy |
| Roof Cover | 850g/m² Double-Coated PVC Fabric |
| Wall Options | Glass / PVC Sidewalls / Rock Wool Panel / ABS |
| Ceiling Material | Fire-Retardant PVC Knife-Coated Fabric |
| Span Width | 3m – 60m (custom) |
| Eave Height | 2.5m / 3m / 4m / 5m / 6m / 7m |
| Wind Load | 100km/h (0.5kN/m²) |
| Snow Load | 15kg/m² |
| Frame Lifespan | 15 – 30 Years |
| MOQ | 1 Set |
No internal poles — clear span design maximizes every square meter. Ideal for seating layouts, exhibitions, and storage racking.
Extend length infinitely by 3m or 5m bays. Combine multiple units for large-scale events up to 5,000+ sqm.
Custom sizes, colors, wall types (glass, PVC, sandwich panel), printing, and branding. Your design, our manufacturing.
Rated for 100km/h wind and 15kg/m² snow. No exterior guy ropes or stakes required. Bar-tensioning roof system ensures weather-tight seal.
Pre-fabricated components enable rapid on-site assembly. Disassemble and relocate as needed — no permanent foundation required.
Anodized aluminum frame (≥12μm), galvanized steel connectors (≥60μm), and 850g/m² double-coated PVC fabric ensure decades of service.
Extruded 4-channel hollow profiles, anodized ≥12μm. Lightweight, corrosion-resistant, maintenance-free.
850g/m² PVC Roof
Double-coated PVC fabric with UV protection. Optional Ferrari, Sioen, or Verseidag branded fabrics available.
Tempered Glass Walls
6mm safety tempered glass with aluminum framing. Full transparency for premium event ambiance.
Common Tent Size Recommendations
Dinner / Banquet Setting
| Capacity | Recommended Size | Area | Side Height |
|---|---|---|---|
| 200 people | 10 x 10m | 100 m² | 2.5m |
| 300 people | 10 x 20m | 200 m² | 2.5m |
| 500 people | 15 x 20m | 300 m² | 3.0m |
| 1,000 people | 15 x 35m | 525 m² | 3.0m |
| 2,000 people | 20 x 50m | 1,000 m² | 4.0m |
| 3,000 people | 30 x 50m | 1,500 m² | 4.0m |
| Capacity | Recommended Size | Area | Side Height |
|---|---|---|---|
| 100 people | 10 x 10m | 100 m² | 2.5m |
| 200 people | 10 x 20m | 200 m² | 2.5m |
| 300 people | 15 x 20m | 300 m² | 3.0m |
| 500 people | 15 x 35m | 525 m² | 3.0m |
| 1,000 people | 20 x 50m | 1,000 m² | 4.0m |
| 2,000 people | 30 x 70m | 2,100 m² | 4.0m |
Transparent glass walls create a romantic, light-filled ambiance. Custom draping and lighting compatible.
Open floor plan accommodates booths, displays, and foot traffic. Professional appearance with aluminum finish.
Cost-effective storage solution. Weather-resistant, quick to deploy, no permanent foundation needed.
Indoor sports courts, gyms, and recreational facilities. High ceiling clearance for volleyball and basketball.
Product launches, gala dinners, conferences. Custom branding and layout options available.
Rapid deployment for disaster response. Field hospitals, command centers, temporary shelters.
OEM/ODM Manufacturing ServiceChangzhou Guangrui Tent Co., Ltd. is a specialized manufacturer with in-house aluminum extrusion, fabric cutting, welding, and quality control facilities. We ship directly from our factory in Changzhou, China — no middlemen, no markups.
Any span from 3m to 60m. Any length via 3m/5m bay extensions. Custom eave heights.
White, grey, black, red, blue, green, yellow, transparent. Custom RAL color matching for frame and fabric.
Logo printing on roof fabric, sidewalls, and glass panels. Private label packaging available.
Fabric swatches, frame profile samples, and glass samples shipped upon request. Low MOQ — 1 set.
Quality & Compliance
Our tents meet global safety and quality standards, ensuring smooth customs clearance and regulatory compliance in your target market.
Contact us for the full certification documentation package.
